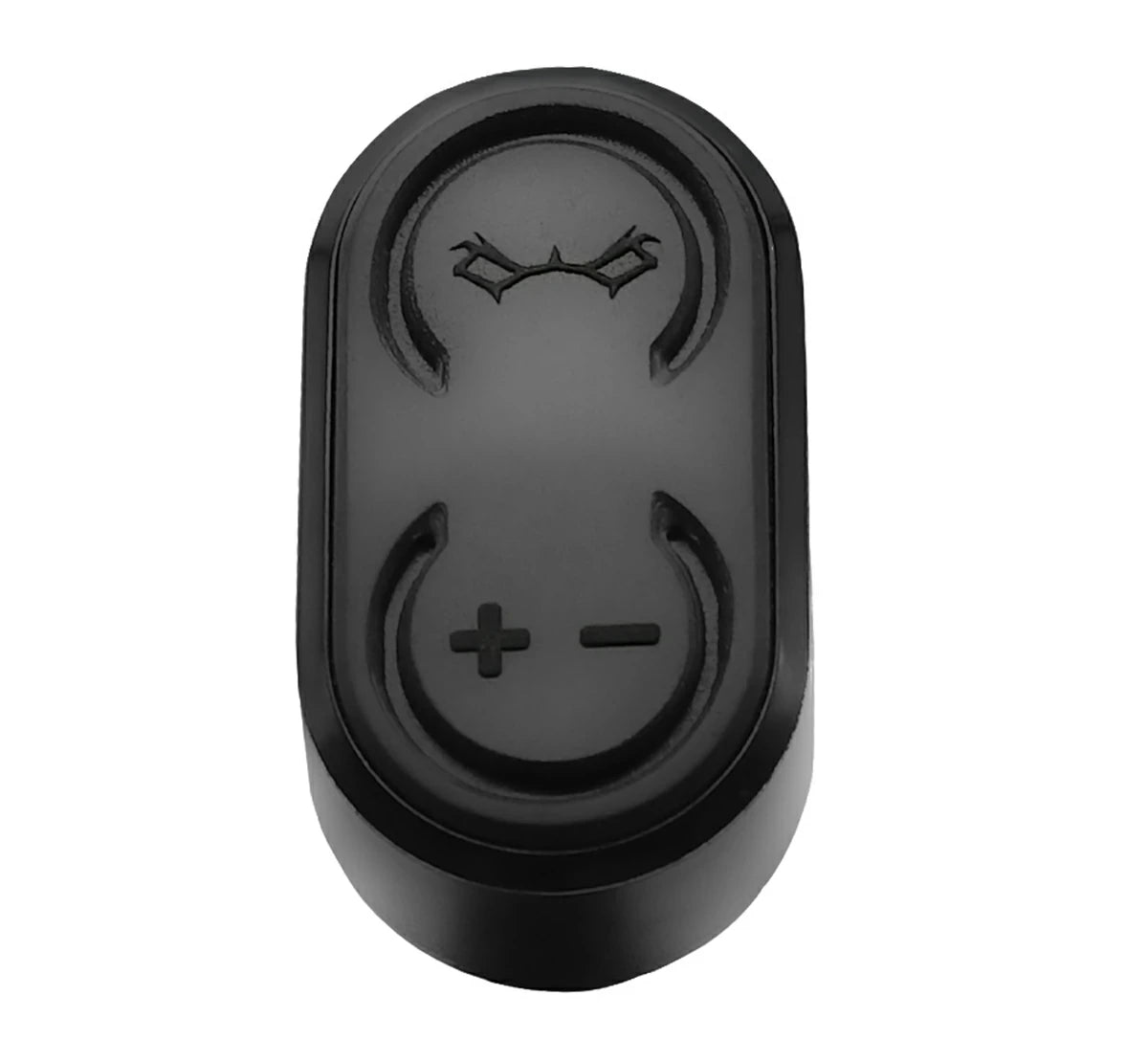

Maddog Dimmer

Maddog Dimmer.
your ultimate tool for tailored brightness on every ride.
Experience unparalleled control, efficiency, and modes.

Key Features of the Dimmer:

1. Quad-Level Dimming: Enjoy four adjustable brightness levels 100%, 75%, 50%, and 25% to match various riding conditions.
2. Pass Functionality: Quickly flash your lights for added safety and visibility when overtaking or signaling.
3. Beacon Mode: Activate a distinct flashing pattern to draw attention in emergency or low-visibility situations.

The Dimmer comes with its own dedicated wire harness, eliminating the need for any additional wiring and does not require an additional Switch or Switch Pro.

In addition, It is not compatible with the standard Wire Harness, Wire Harness Pro, or Dual Wire Harness Pro.

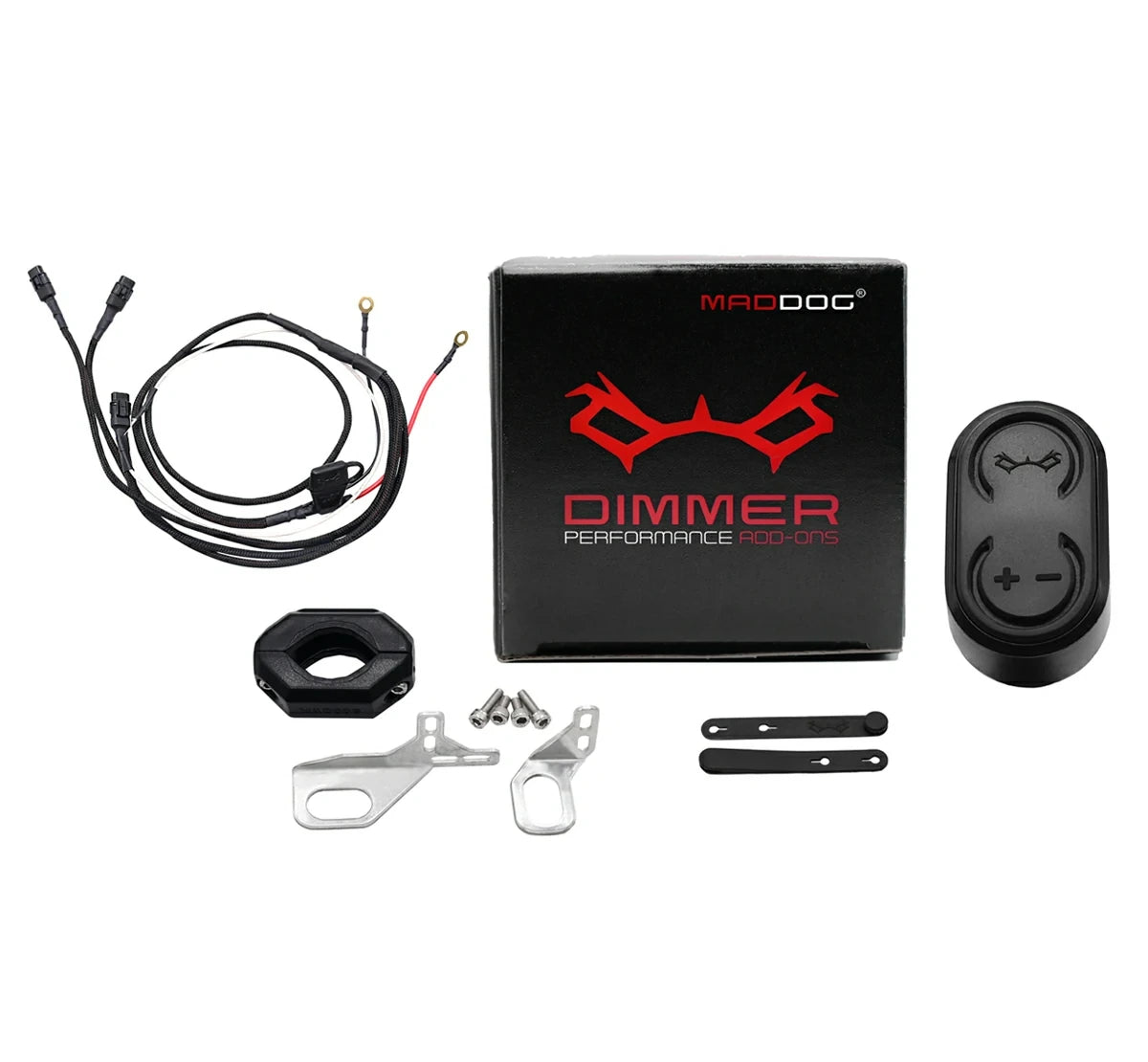

 A Dimmer

 Dimmer Wire Harness

 Warranty card

 Screw kit

 Tail connectors

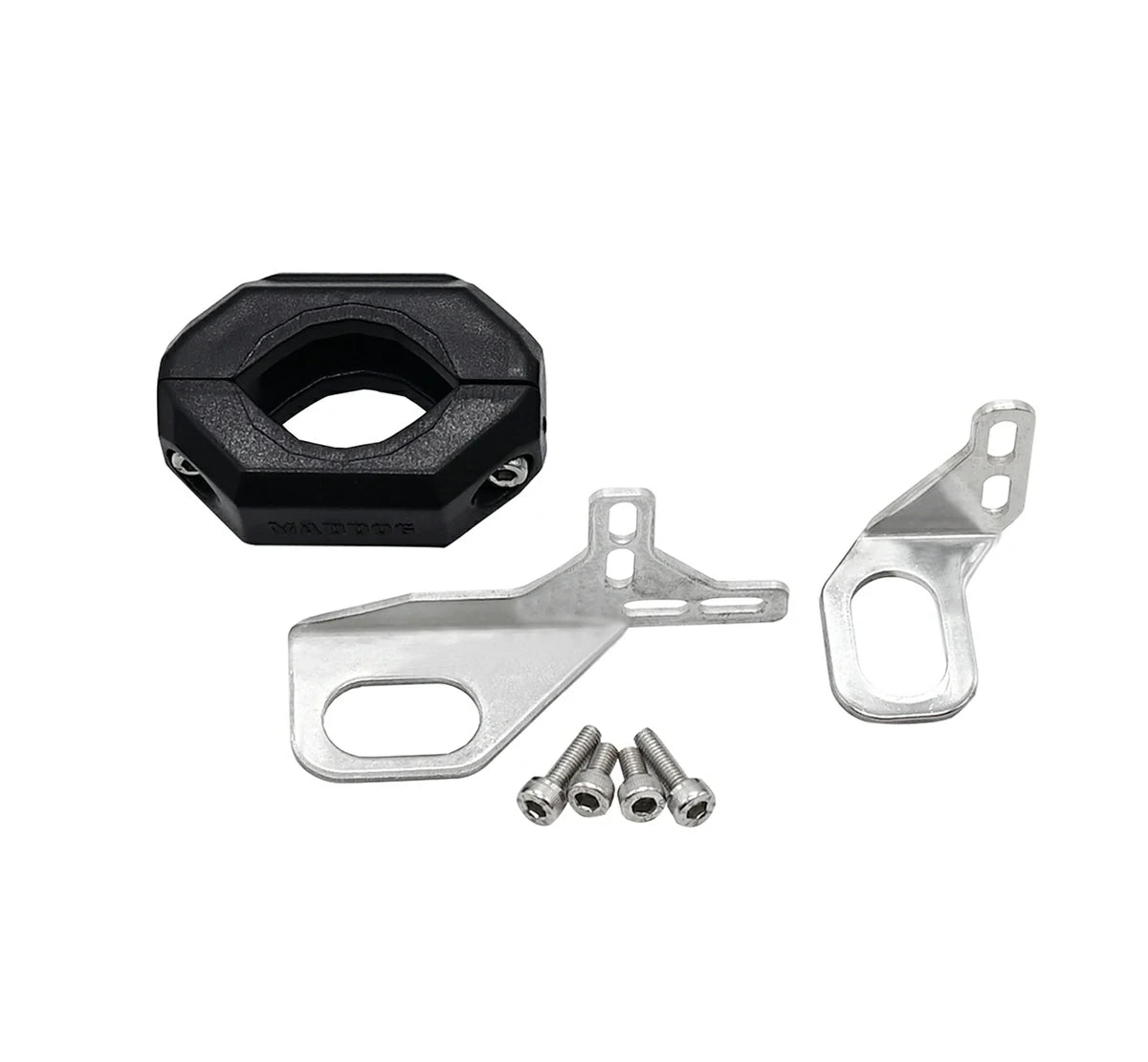

 1x Handle bar clamp

 2x Mirror mount

Specifications

• Relay     Solid State Relay protected circuit
• Wattage     140
• Voltage     9-24v
• Fuse     15A
• Temp     -10°C to +50°C
• Life span     50000 Hrs
• Wire Thickness     1 sqmm
• Total Length     1.5M
• IP Rating     IP-67
• Country of Origin     INDIA
