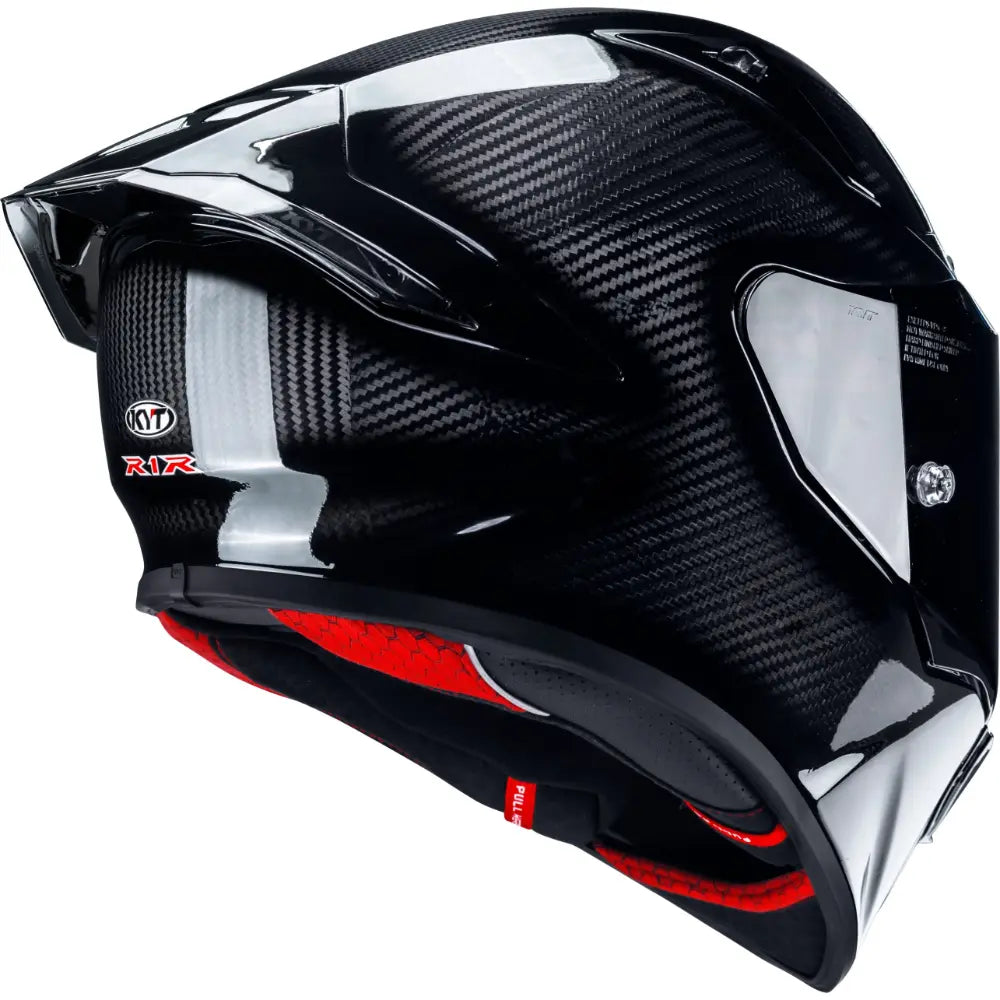

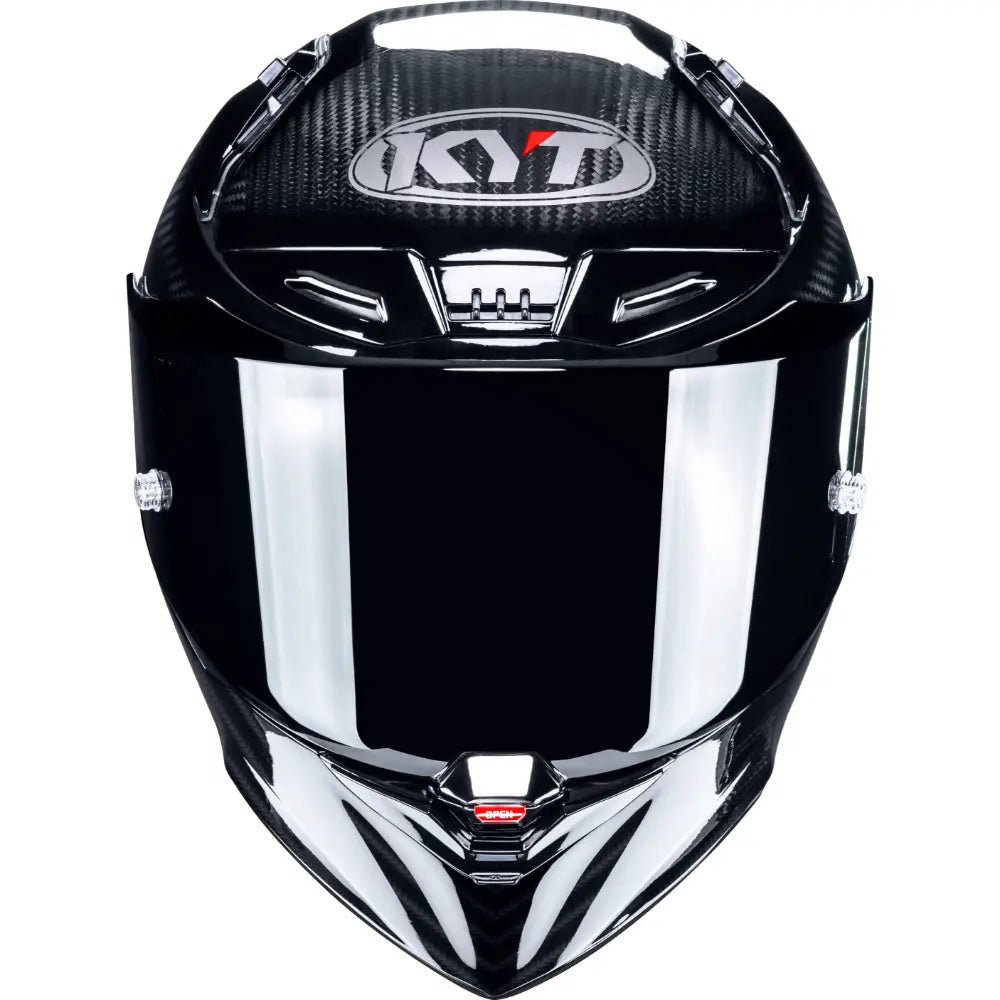

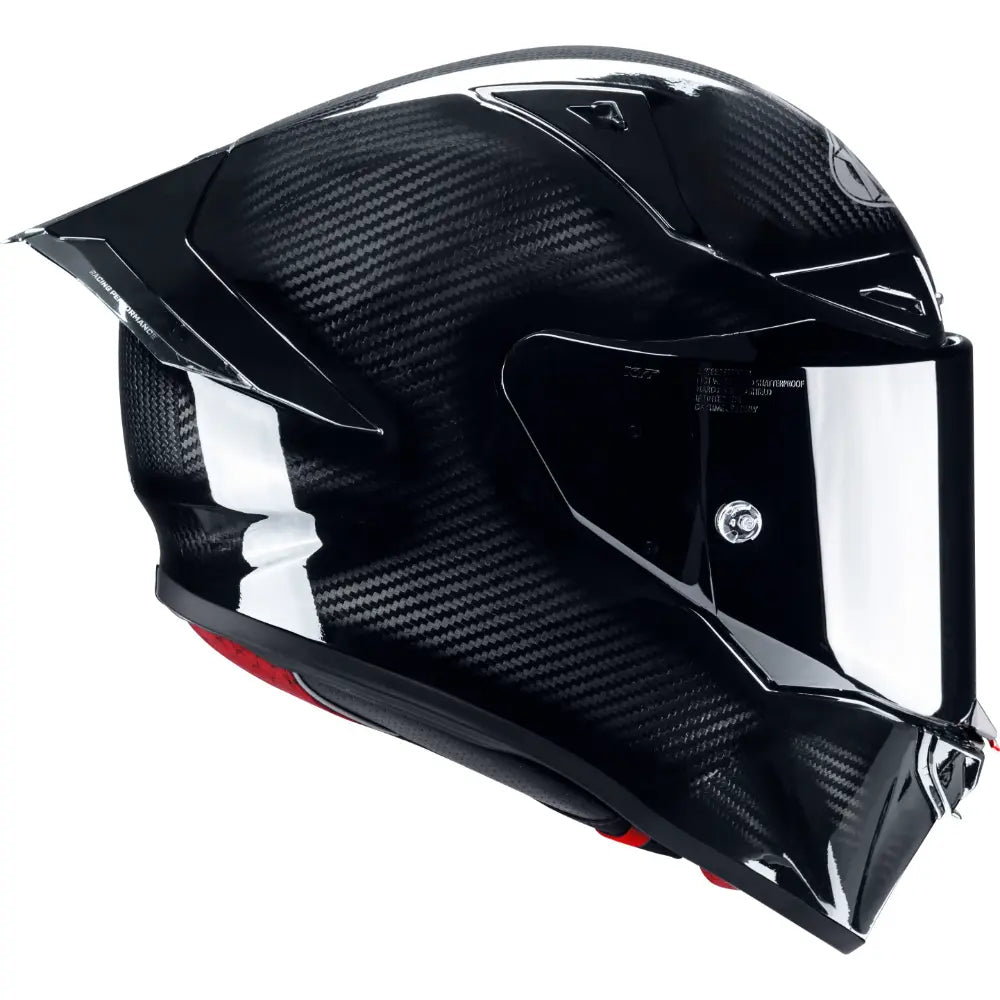

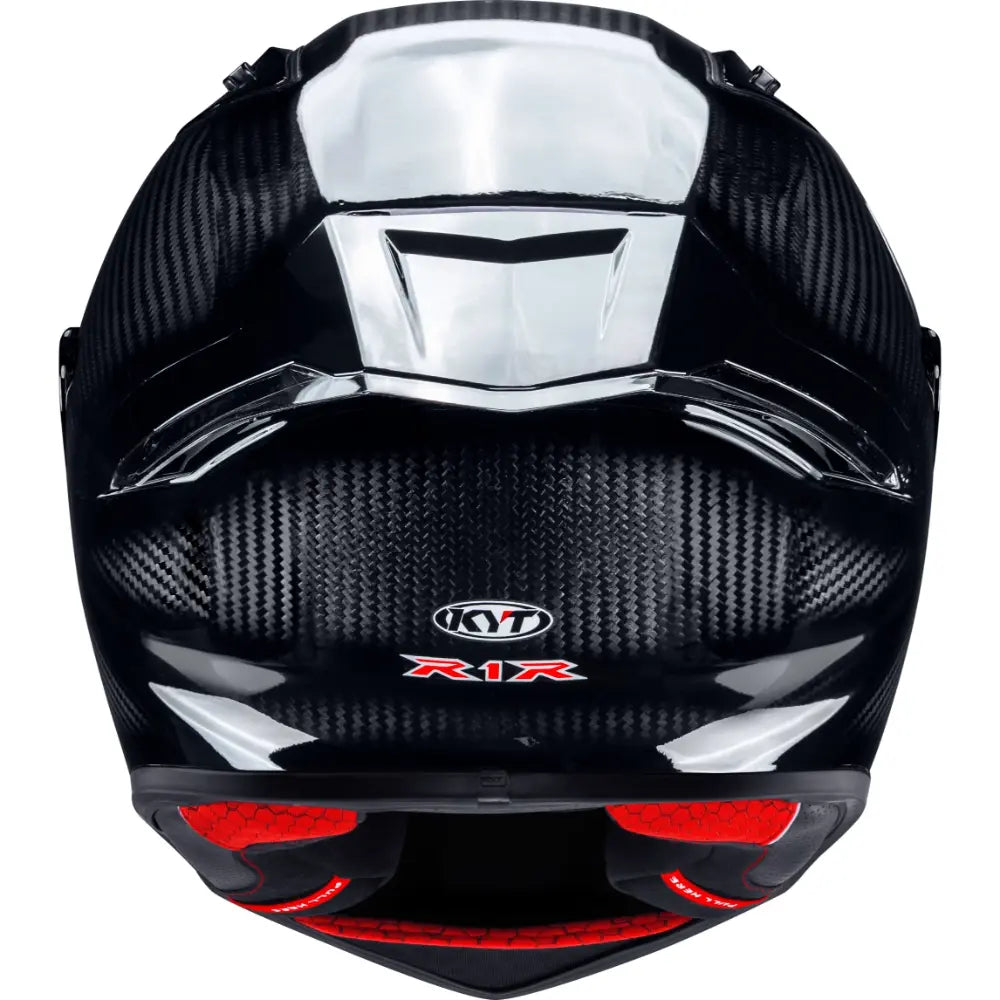

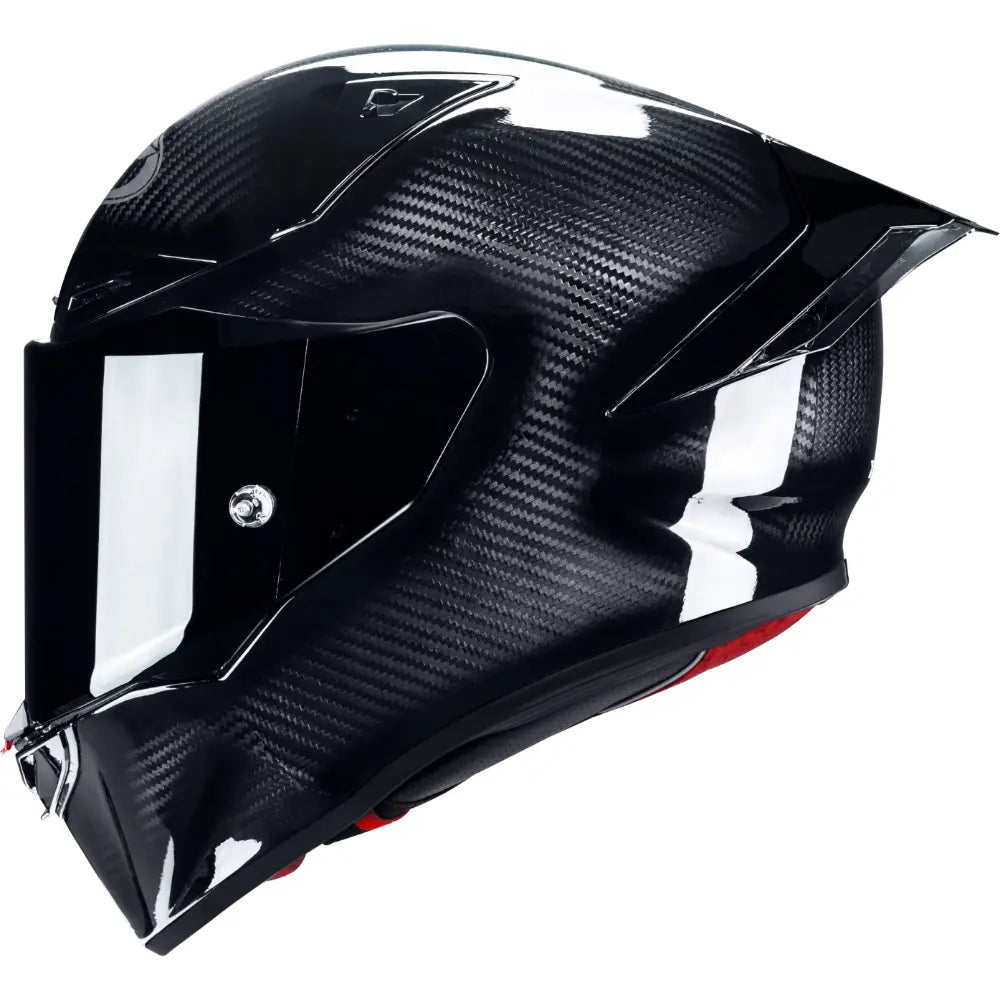

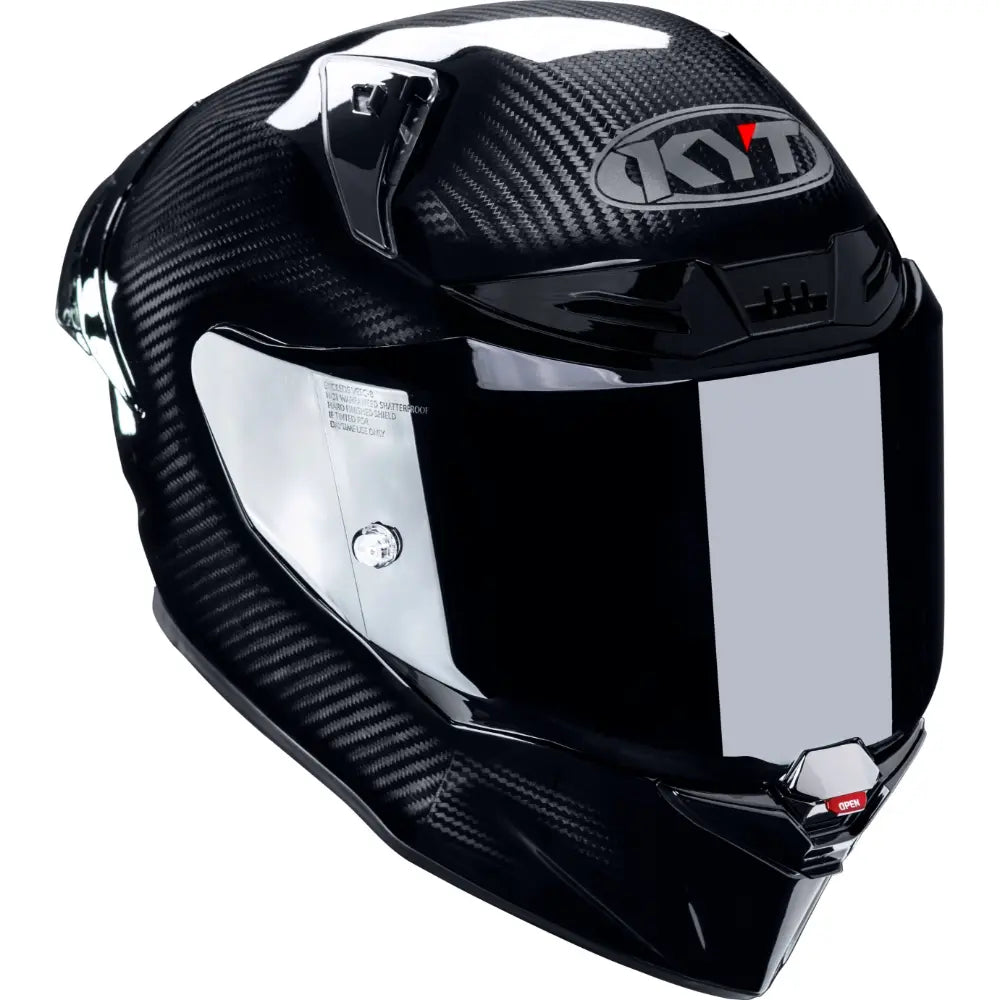

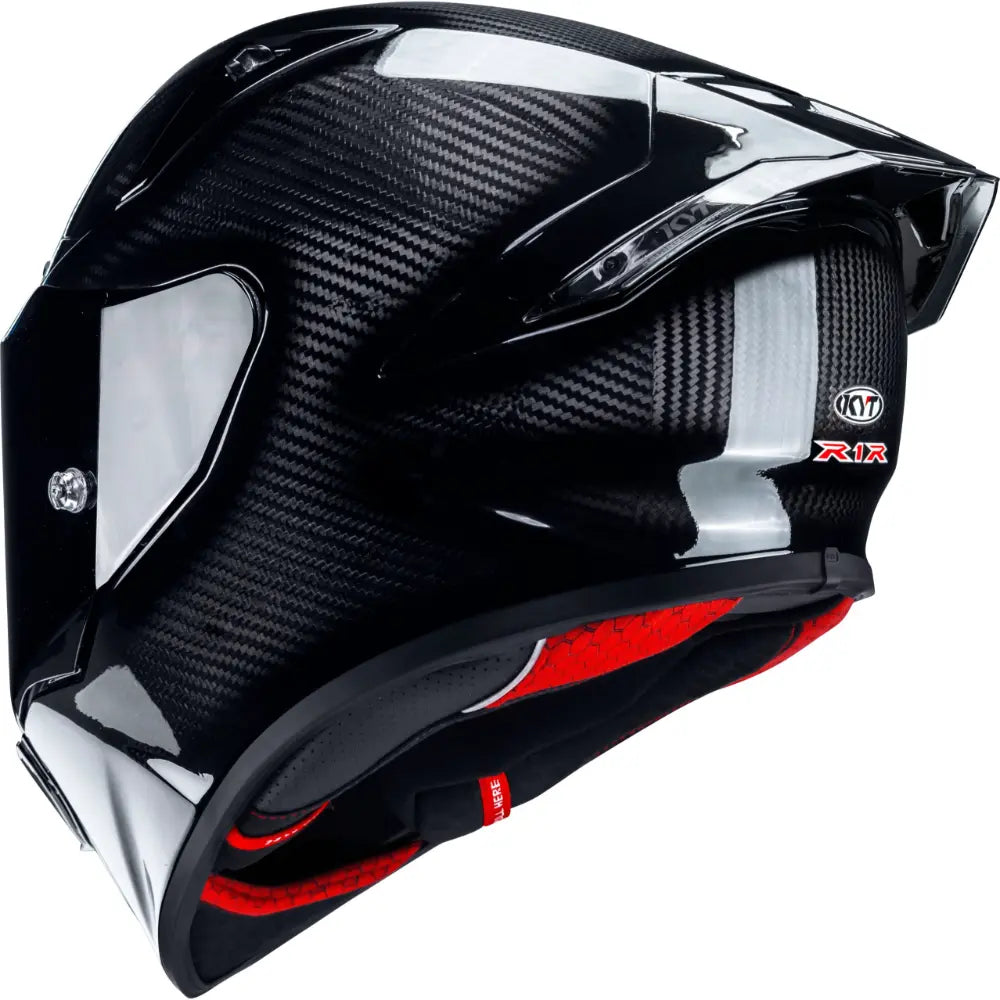

KYT R1R Carbon Solid Gloss Black Helmet

KYT R1R Carbon Helmet

R1R! Inspired by MotoGP experience, this dynamic design, engineered and developed in Italy with the most advanced digital tools, has undergone rigorous testing by KYT riders to ensure top-of-the-line performance. It boasts improved aerodynamics thanks to over three years of wind tunnel testing and extensive road and track testing to optimize fluid dynamics in various riding positions—straight, braking, and cornering—for maximum rider comfort. Vertical and peripheral fields of vision of 90 and 210 degrees, respectively, “Hydrocool textile” fabrics, a visor mechanism with a rototranslation system and a “Racing Lock System” visor locking mechanism in metal alloy, the most stringent used by MotoGP riders. The R1R is the ideal helmet for the road and the track

Homologation



The helmet comes with ECE 22.06 and ISI certification.

Shell

Materials: TRICOMPOSITE (Carbon fiber, fiberglass, aramidic fiber)

The shell is made of TRICOCOMPOSITE fiber, a new composite that allows for a lighter yet more protective shell. The new composite is a blend of carbon fiber, aramid fibers, and fiberglass with different weight/breaking strengths that ensure a lightweight and significantly more impact-resistant shell. The R1R is produced in three different shell sizes: S, M, and L.


LINER

The liner is available in three sizes (S, M, and L) for improved ergonomics and is designed with variable densities. This feature allows for gradual and progressive absorption of impact energy. Although most of the impact energy is absorbed by the outer shell, thanks to its deformation, the polystyrene plays a key role in absorbing residual energy. Varying the polystyrene density in different impact zones optimizes the mechanical performance of the shell, ensuring the highest level of safety.

Visor

The scratch-resistant, variable-thickness, injected polycarbonate visor, rated optical class 1, is easy to remove thanks to a tool-free system.
The rotational-translation mechanism provides greater strength when closing. The visor is also equipped with a metal alloy “Racing Lock System.”
This mechanism reduces the risk of detachment in the event of an accident.
The R1R is designed for tear-off lenses (Not Included)



PINLOCK

R1R is ready for PINLOCK® MAX VISION 70. (NOT INCLUDED)

Ventilation

Ventilation is provided by an efficient system consisting of a chin guard air intake, a large front air intake, and two side vents that work together to achieve maximum comfort. The system works in conjunction with a network of integrated channels that ensure excellent airflow inside the helmet.
The aerodynamic spoiler also acts as air extraction thanks to the Venturi effect provided by the rear extractors located beneath it.

Inners



The cheek pads and liner can be removed, washed, and replaced.
They are made of premium “Hydrocool Textile” fabric with specific fibers that offer the following characteristics:
1. They allow for rapid dissipation of body heat
2. They keep the skin cool and dry
3. They feature a special hygienic treatment
The cheek pads are easily removable in an emergency thanks to the quick-release system.

Retention System

The chinstrap features a stainless steel double D ring retention system

ACCESSORIES
 Nose guard and Chin Curtain included

Weight: Weight (approx.) grams 1450 ±50 as per shell sizes

What's included in the Box

• Helmet Cloth Bag x 1pc
• User manual x 1pc

Size Chart:

Sizing information is provided by the manufacturer and does not guarantee a perfect fit. Please use the sizes shown as a guide only.

Technical Specifications:

• Homologations: ECE 22-06 , ISI
• Commercial Name:  KYT R1R
• Description: Full face helmet
• Materials shell: TRICOMPOSITE (Carbon fiber, fiberglass, aramidic fiber)

• Polystyrene: POLYSTYRENE IN THREE SIZES (S, M, L)
• Visor: Scratch Resistant, ANTI UV 380
• Antifog System: Pinlock Max Vision 70 (Ready) (Antifog lens not included)
• Retention System: DD ring
• Approx. Weight: 1450 gr ±50 in size M
• Nr. shell: 3
• Nr. polystyrene: 3

Note:

• Images shown for illustration purpose only.
• Actual product may vary in finish, specifications, look without any discretion from manufacturer.
• All information and features in this data sheet are valid only for the current helmet version in compliance with the mentioned homologation.
• These features can be changed in case of new homologation requests and/or extension of the current ones.
• All the KYT products are constantly subject to a continual improvement process, that’s why KYT reserves the right to make changes, without prior notice, to the products object of this technical sheet.
• It is therefore not possible to exercise any rights on the basis of the information, illustrations and descriptions contained in this technical sheet.
